AL2503 Hose Crane for Chemical Media Transportation

Part 1: Bottom Loading Arms

- Bottom loading arms, as the name suggests, refer to loading arms where the connection point is located at the rear or bottom section of the tank truck.

Part 2: Common Bottom Loading Arm Model: AL2503

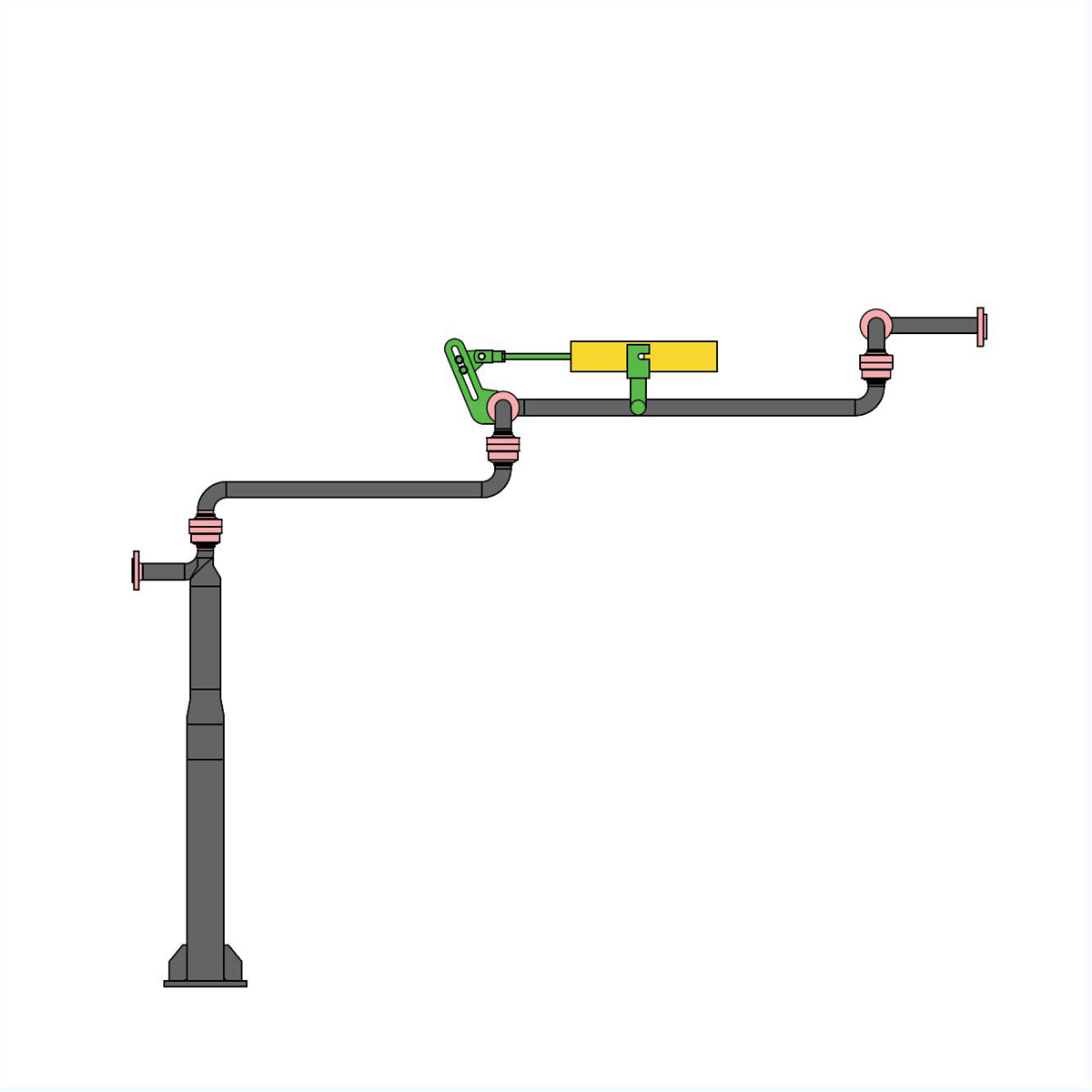

- AL2503 is a common structural type of bottom loading arm.
- It typically connects to the tank truck via flanges or quick couplings, ensuring effective sealing.
- Application: Bottom-sealed loading/unloading of tank trucks.
- Suitable Media: Refined oil products, chemical media, etc.
- Nominal Diameter: DN50 ~ DN150.
- Material: Determined by the medium and customer requirements (e.g., Carbon Steel, Stainless Steel, PTFE-lined).
- Design Temperature: Determined by the medium, operating conditions, and the selected material.

Model:
AL2503 Hose Crane for Chemical Media Transportation
Brand:
CHUN JONG

Quantity:
Availability:





Inquire Add to Basket

PTFE Metal Tank Quick Coupling LOADARM

Product Description

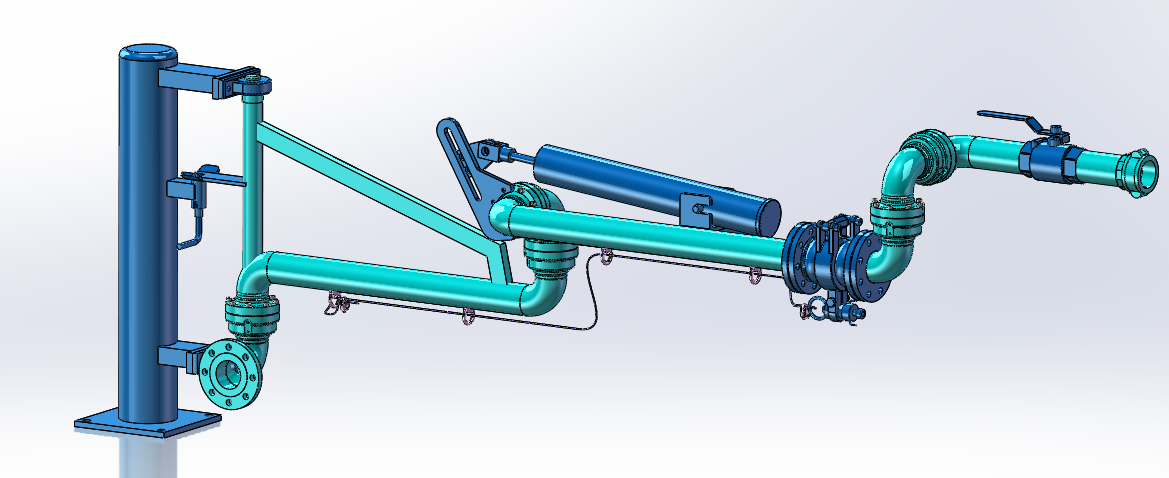

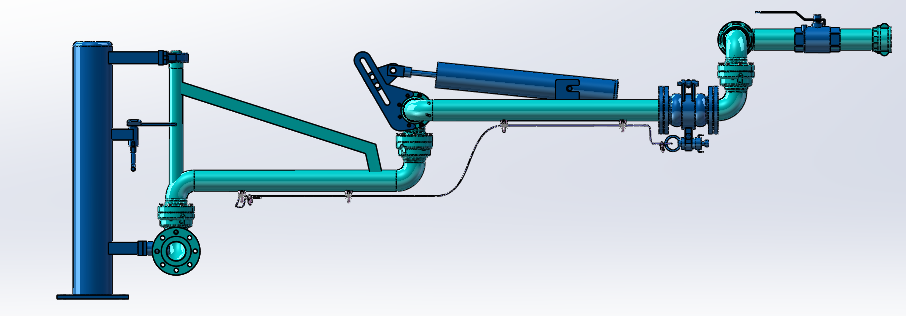

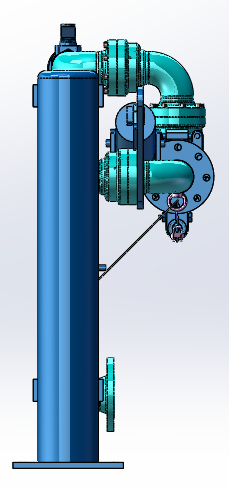

The AL2503 hose crane is designed for bottom - sealed loading and unloading of vehicles. It is suitable for products like refined oil and chemical media, with various nominal diameters available. Usually connected by flanges or quick - connect joints, it offers excellent sealing performance. The material can be selected as carbon steel, stainless steel, etc., according to the media, meeting different working conditions requirements.

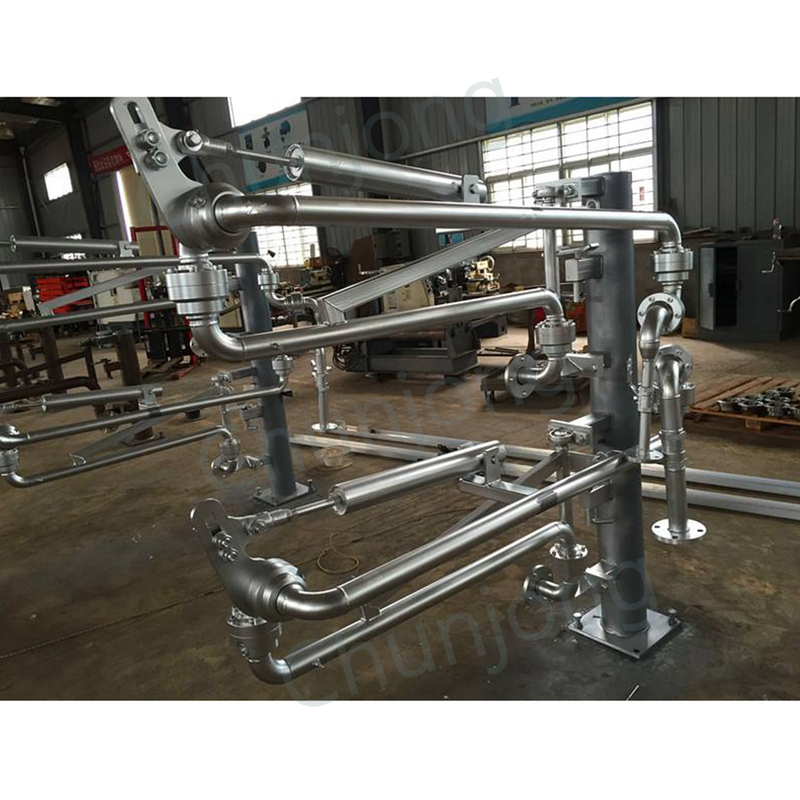

Our land loading arm is especially designed for transporting fluid between piping system and tanker, which shall be designed for different tanker, liquids and site conditions.
Equipped with loading platform, folding stairs and safety cage to make the land loading arm into a complete loading system.
By level location or quantitative monitoring, while fluid level exceed the present value, provide the sound and visual alarm or the remote signal.

According to the products, models and requirements of customers, the operating modes could be manual, pneumatic or hydraulic etc.
