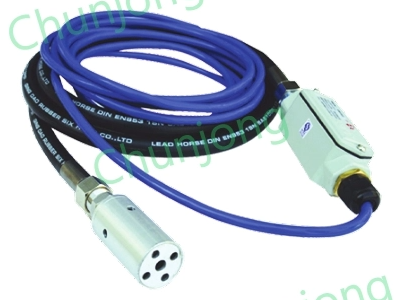

Float probe sensor

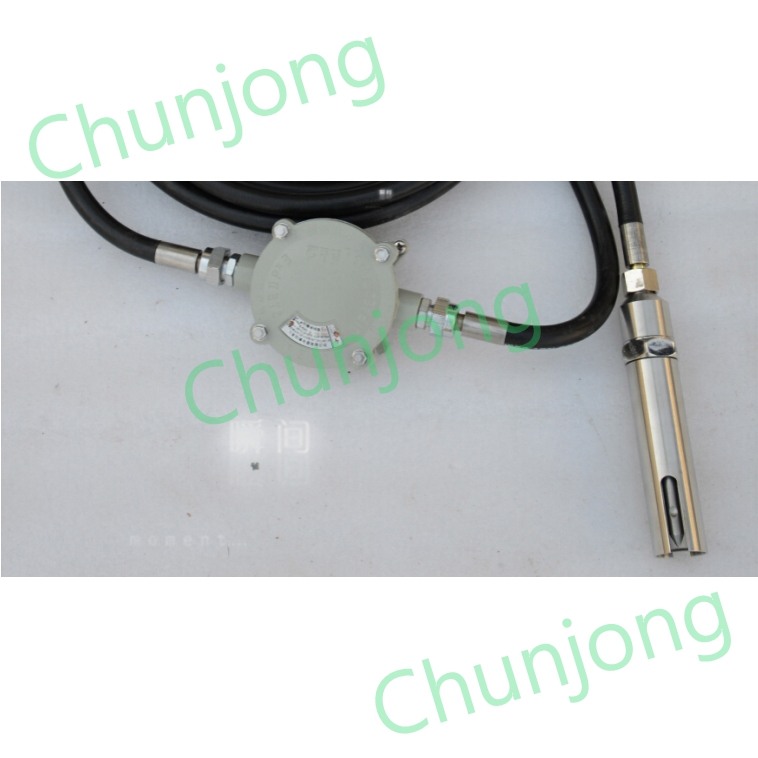

The tuning fork type anti overflow probe uses the tuning fork principle and the whole digital circuit design to detect the liquid level in the truck tank. It is connected to the main controller to provide the liquid level status signal to the anti overflow control system of the oil depot and realize the interlocking control with the auxiliary oil system.

Tuning fork level meter is the switch that controls the level. When it works, the tuning fork vibrates continuously. When an object touches the tuning fork, it will destroy the vibration resonance. There is a current output in the circuit, which outputs the exciting current, and then there is a feedback. When the vibration is destroyed, the circuit will recognize it, and then it can output a switch signal, which is the relay signal.

Model:
Float probe sensor
Brand:
CHUN JONG

Quantity:
Availability:





Inquire Add to Basket

Float probe sensor safety

Product Description

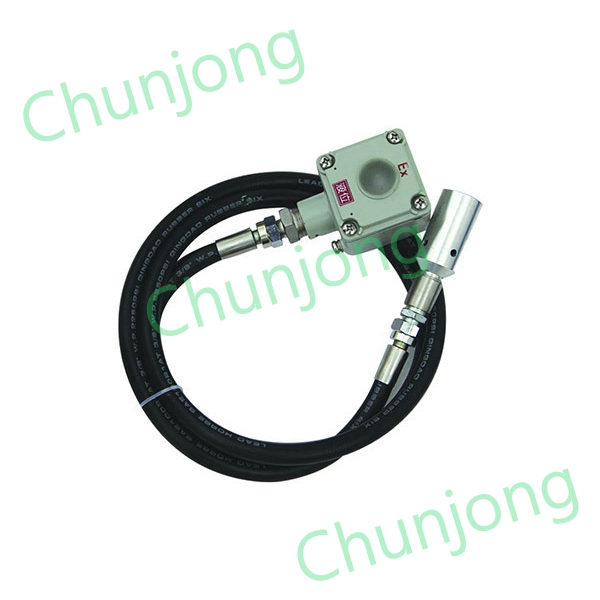

The top anti overflow detector uses the principle of refraction and reflection of light. When the light enters different media, the liquid level is controlled by the light signal transforming to electric signal due to different reflectivity, so as to detect the liquid level in the truck tank.

It is installed with loading arm and connected to the main controller, providing liquid level status signal to the oil depot overflow control system, and realizing the interlock function with oil delivery system.

characteristic:

1) Optical principle, overall intrinsic safety design;

2) The installation and adjustment is convenient, and the alarm height can be adjusted by locking the positioning device;

3) The input voltage range is wide, the whole digital circuit design, the anti-interference ability is strong;

4) Cable length is 7m, stainless steel probe rod protection shell, explosion-proof magnet or sealing plug;

5) Safe and stable, fast response, suitable for finished oil and various corrosive media. The prism at the front of the probe rod is a vertebra with diameter of 10 mm and height of 10 mm, which is small in volume and is not easy to generate static electricity. The shell of the probe rod is directly connected with the grounding pile through the steel braided hose, which is convenient for the electrostatic output.
